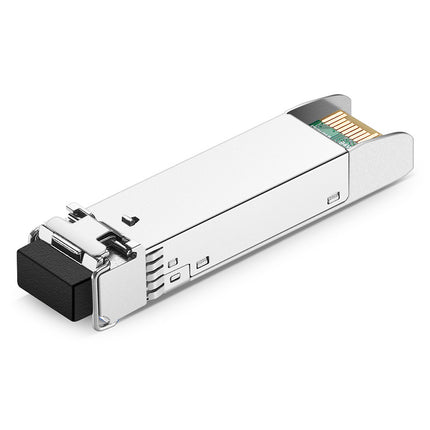

MXNet 1G SFP with Multimode Fiber

Description

This 1G SFP LC Multimode Module (Transceiver) allows users to connect a 1G fiber link from the AC-MXNET-SW24 to the AC-MXNET-SW10 or for endpoint extension with fiber.

MXNet 1G SFP with Multimode Fiber

Product form
  • Max. Power Consumption 0.8W
  • Hot Pluggable SFP MSA Compliant
  • Compliant to IEEE 802.3z Gigabit Ethernet
  • Tested on MXNet Switches for Superior Performance, Quality, and Reliability
  • Class 1 FDA Laser Safety and RoHS Compliant

SKU: AC-1G-SFP-MM

  • Shipped today? Order within: Feb 26, 2024 13:00:00 -0600

Description

This 1G SFP LC Multimode Module (Transceiver) allows users to connect a 1G fiber link from the AC-MXNET-SW24 to the AC-MXNET-SW10 or for endpoint extension with fiber.

  • Specs
Form FactorSFP
Max. Data Rate1.25Gbps
Wavelength850nm
Max. Cable Distance550m@50/125µm OM2 MMF
275m@62.5/125µm OM1 MMF
220m@62.5/125µm FDDI MMF
ConnectorDuplex LC
MediaMMF
Transmitter TypeVCSEL
Receiver TypePIN
DDM/DOMSupported
Commercial Temperature Range0 to 70°C (32 to 158°F)
TX Power-9.5 ~ - 3dBm
Receiver Sensitivity< -17dBm
Typical Power Consumption≤0.8w
Receiver Overload-3dBm
Bit Error Ratio (BER)1.00E-12
Extinction Ratio>9dB
EMC (Electro Magnetic Compatibility)Supported
MTBF (SX)2,457,002 Hours
ProtocolsIEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
