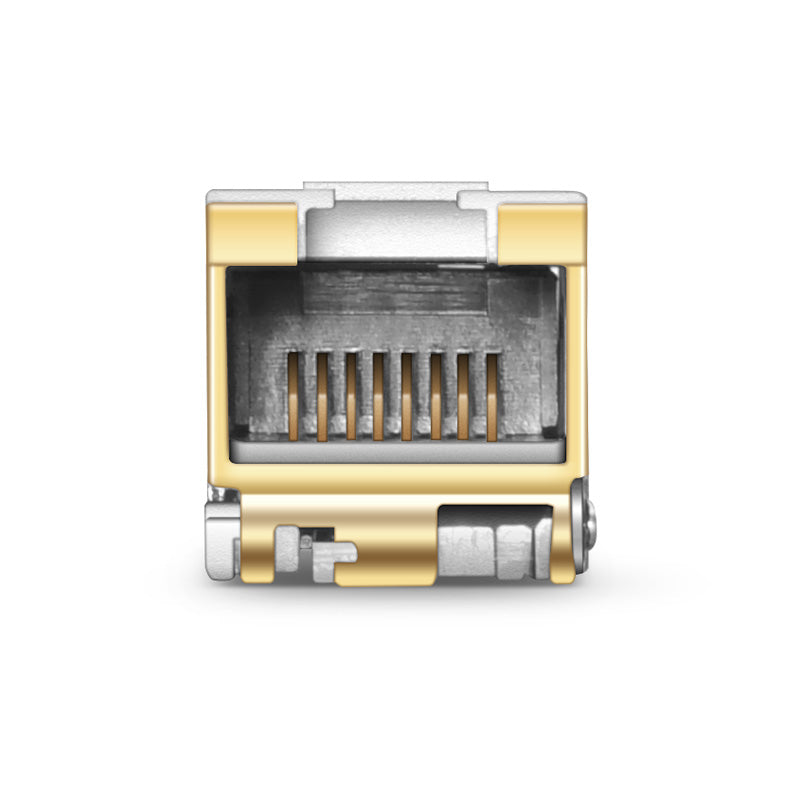

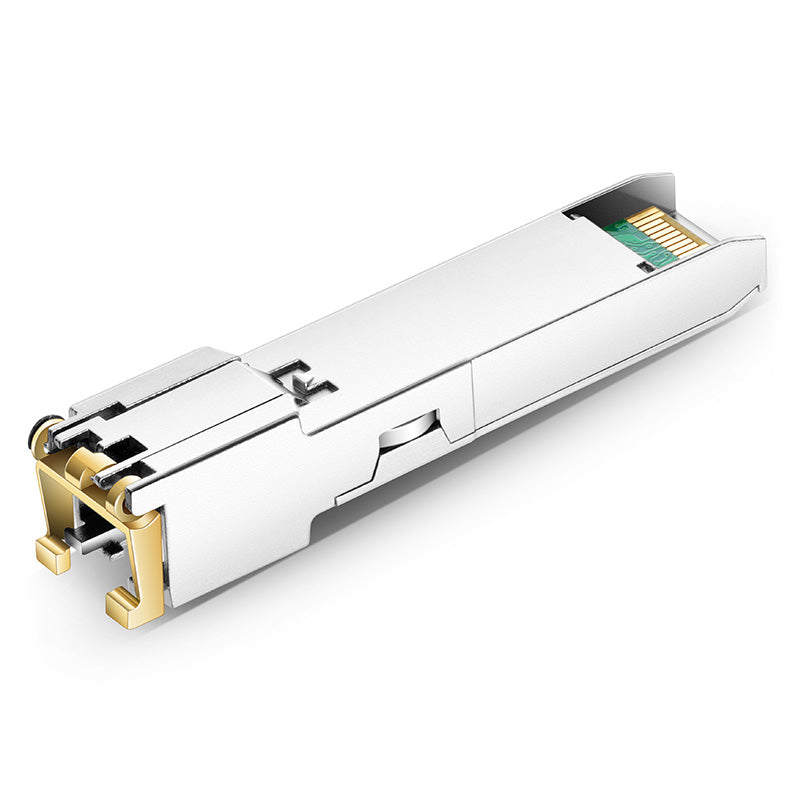

MXnet 1G SFP with Copper RJ-45

Description

This 1G SFP (Transceiver) allows users to connect a 1G copper link via RJ-45 from 1G MXnet switches such as AC-MXNET-SW24 and AC-MXNET-SW48 or for 1G MXnet endpoint extension with standard category cable up to 100m.

Read more

MXnet 1G SFP with Copper RJ-45

Product form

  • Terminated RJ45 Connectors Allow 1G Bandwidth over Existing Copper Infrastructure
  • Hot Pluggable SFP MSA Compliant
  • Compliant to IEEE Std 802.3 and 802.3ab Gigabit Ethernet
  • Built-in Marvell Chip, Max. Power Consumption 1.2W
  • Tested with MXNet Switches for Superior Performance, Quality, and Reliability

SKU: AC-1G-SFP-C

  • Shipped today? Order within: Feb 22, 2025 13:00:00 -0600

Login

Description

This 1G SFP (Transceiver) allows users to connect a 1G copper link via RJ-45 from 1G MXnet switches such as AC-MXNET-SW24 and AC-MXNET-SW48 or for 1G MXnet endpoint extension with standard category cable up to 100m.

Read more

  • Specs
Form FactorSFP
Max. Cable Distance100m
ConnectorRJ-45
Power Consumption≤1.2W
Commercial Temperature Range0 to 70°C (32 to 158°F)
EMC (Electro Magnetic Compatibility)Supported
ProtocolsIEEE Std 802.3 and 802.3ab, SFP MSA Compliant
Max. Data Rate1000Mbps
MediaCat 5e/6/6a
Rx LOSNO
DDM/DOMNot Supported
Bit Error Ratio (BER)1.00E-12
MTBF217,330 Hours
