eARC DANTE™ Encoder

Description

Description

The first-of-its-kind AudioControl AC-DANTE-ETV eARC-to-Dante encoder connects PCM Stereo PCM-configured video Display audio from a local TV zone with any Dante-enabled device located on the same network for site-wide distribution.

Ultra-compact and PoE-powered, the AC-DANTE-ETV deftly fits behind the sleekest flat panel and encodes digital eARC TV audio into Dante, maintaining the signal in the digital domain and making it available to networked Dante devices. Industry-standard sampling rates from 44.1 kHz to as high as 96 kHz in 16-, 24-, or 32-bit word lengths are converted into analog with zero impact on audio fidelity and with imperceptible delay for unified, coherent site-wide playback.

 CEC enables users to control volume levels using the TV remote from the locally zoned display. A second digital input, selectable between Coaxial and TOSLINK inputs, switches between eARC and a second digital audio source.

 Dante Controller, downloadable free from Audinate, is required to perform initial configuration, encoding parameters, Dante stream subscriptions, network settings, and AES67 audio support adjustments. For static installations, these may be set-and-forget adjustments. When powered and connected to a Dante network, the AC-DANTE-ETV is ‘auto-discovered’ for easy identification.

Read more

eARC DANTE™ Encoder

Product form

2-Channel eARC DANTE™ Encoder

  • First-of-its-kind PoE Dante eARC encoder
  • Power over Ethernet (PoE) compatible; also by an included 5V PSU
  • Dante™ and AES67 multicast system compatible
  • CEC-through-TV remote volume control of a Dante-enabled amplifier
  • Audio remains in the digital domain until lossless conversion for playback
  • Second Coax/TOSLINK digital input with signal sense switching

SKU: ACP-DANTE-ETV
Barcode: 00810108231288

  • Shipped today? Order within: Dec 26, 2024 13:00:00 -0600

Login

Description

Description

The first-of-its-kind AudioControl AC-DANTE-ETV eARC-to-Dante encoder connects PCM Stereo PCM-configured video Display audio from a local TV zone with any Dante-enabled device located on the same network for site-wide distribution.

Ultra-compact and PoE-powered, the AC-DANTE-ETV deftly fits behind the sleekest flat panel and encodes digital eARC TV audio into Dante, maintaining the signal in the digital domain and making it available to networked Dante devices. Industry-standard sampling rates from 44.1 kHz to as high as 96 kHz in 16-, 24-, or 32-bit word lengths are converted into analog with zero impact on audio fidelity and with imperceptible delay for unified, coherent site-wide playback.

 CEC enables users to control volume levels using the TV remote from the locally zoned display. A second digital input, selectable between Coaxial and TOSLINK inputs, switches between eARC and a second digital audio source.

 Dante Controller, downloadable free from Audinate, is required to perform initial configuration, encoding parameters, Dante stream subscriptions, network settings, and AES67 audio support adjustments. For static installations, these may be set-and-forget adjustments. When powered and connected to a Dante network, the AC-DANTE-ETV is ‘auto-discovered’ for easy identification.

Read more

  • FEATURES
  • SPECIFICATIONS
  • RESOURCES
  • PoE-powered and compact dimensions for easy placement options
  • First-of-its-kind eARC to Dante encoder makes TV audio distribution, especially from TV Apps, easy to distribute
  • Signal remains in the digital domain until converted for100% lossless, accurate full frequency response encoding accuracy
  • CEC enables the local zone TV remote to control the volume. There is no need for extensive third-party programming or additional control devices.
  • Signal sensing switching between eARC signal and secondary digital input
AUDIO
Frequency Response20-20kHz
FormatLPCM
Supported Sample Rates44.1kHz, 48kHz, 88.2kHz, 96kHz
Supported Bit Depths16, 24, 32
LatencyConfigurable 1, 2, 5ms

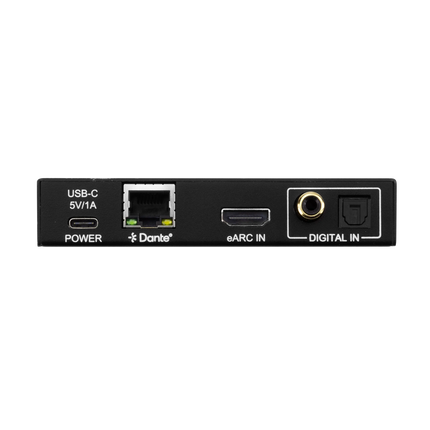

AUDIO CONNECTIONS
EARC Input1x HDMI
Digital Audio Input1x Toslink
Dante Network Audio1x RJ-45
POWER
USB Type-C Power Adapter

Input: 100-240VAC, 50/60Hz, 0.5A

Output: 5VDC, 1A

PoE via RJ45Power over Ethernet
ENVIRONMENTAL
Operating Temperature23°F (-5°C) to 125°F (51°C)
Storage Temperature-4°F (-20°C) to 140°F (60°C)
Humidity Range5% to 90% RH (no condensation)
DIMENSIONS
MountingFurniture Mount Support
Height x Width x Depth (Single Unit)

Millimeters: 110 x 96 x 25

Inches: 4.33 x 3.78 x 1

Height x Width x Depth (Packaged Unit)

Millimeters: 193 x 136 x 41

Inches: 7.6 x 5.35 x 1.62

Weight (Single Unit)0.5 lbs (0.23 kg)
Weight (Packaged Unit)0.85 lbs (0.38 kg)
Product Warranty5 Years
*Specifications are subject to change without notice. Mass and dimensions are approximate.
