18Gbps Universal Signal Manager

Description

The AVPro Edge's AC-SC2-AUHD-GEN2 is the ideal solution for integrators that need to distribute a signal to various displays and keep an optimal picture. Integrators will enjoy its versatility. It can upscale and downscale stereo audio HDMI but it can also han­dle EDID issues, including 4K HDR EDIDs, and bypass multichannel audio when the scaler is off. This scaler is ready for future content as well as it's able to distribute 18Gbps signaling. Yet if you have 480p, 720p, or 1080p displays, the AC-SC2-AUHD-GEN2 will ensure it's getting the right picture.

This product works great alongside one of the AVPro Edge's matrix switchers allowing you to give the customer the best resolution possible.

18Gbps Universal Signal Manager

Product form
  • Fixed Output Scaling Options 480P, 720P, 1080P & 4K
  • Interlaced to Progressive Scaling
  • EDID Management and EDID emulate with16 EDID Options
  • HDMI 2.0

SKU: AC-SC2-AUHD-GEN2

  • Shipped today? Order within: Mar 03, 2024 13:00:00 -0600

Description

The AVPro Edge's AC-SC2-AUHD-GEN2 is the ideal solution for integrators that need to distribute a signal to various displays and keep an optimal picture. Integrators will enjoy its versatility. It can upscale and downscale stereo audio HDMI but it can also han­dle EDID issues, including 4K HDR EDIDs, and bypass multichannel audio when the scaler is off. This scaler is ready for future content as well as it's able to distribute 18Gbps signaling. Yet if you have 480p, 720p, or 1080p displays, the AC-SC2-AUHD-GEN2 will ensure it's getting the right picture.

This product works great alongside one of the AVPro Edge's matrix switchers allowing you to give the customer the best resolution possible.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

Full HDR Support - With a plethora of HDR EDIDs to choose from, HDR can be activated on capable displays no matter what the infrastructure requires. This allows flexibility in system design and will enable you to maximize budgets by providing HDR content where you want it.

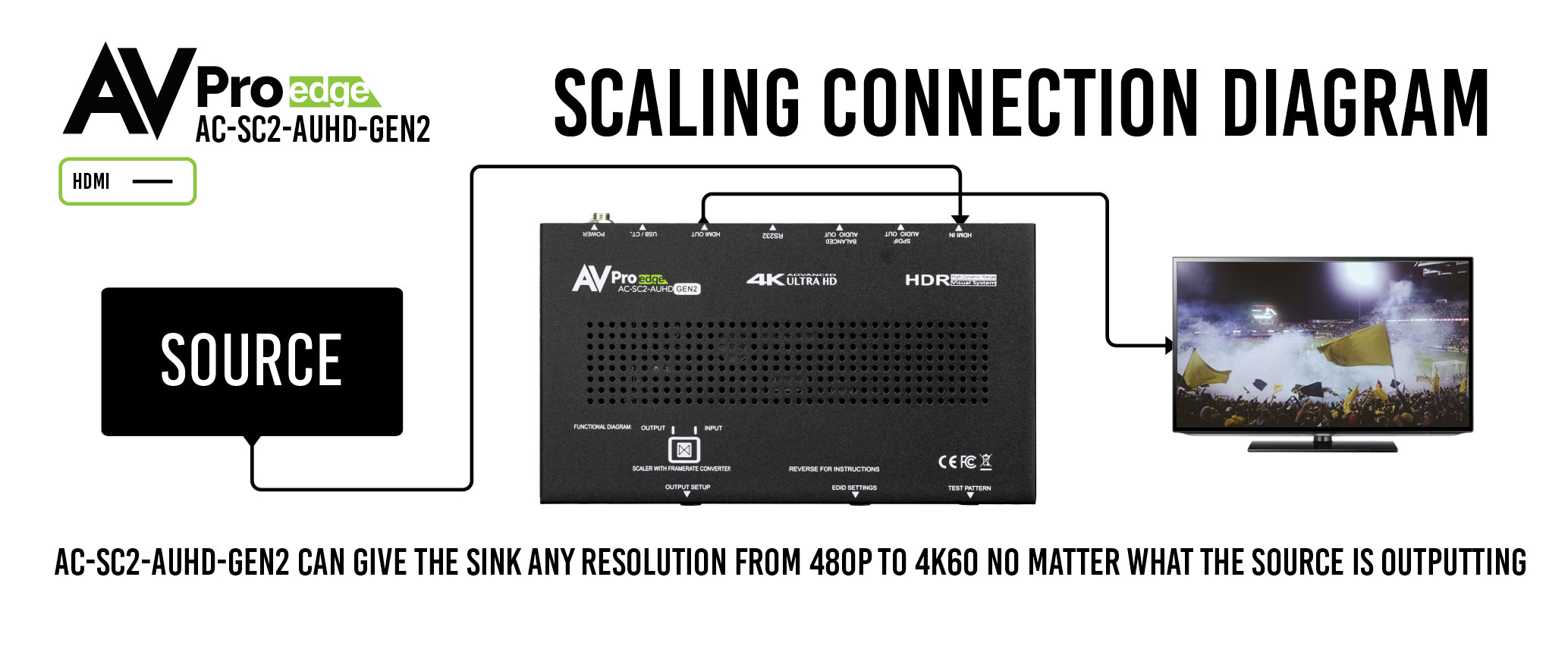

Fixed Output Up/Down Scaling - Most AVRs, matrix switchers, and other peripherals cannot scale. Typically, 4K systems are limited to the maximum resolution of the cheapest or oldest display. If you took the most expensive 4K matrix not equipped with scaling, you would still have to "dumb down" the entire system to be compatible with the cheap or old display. The AC-SC2-AUHD-GEN2 is the solution! Place the scaler before the older display and enjoy 4K content on the capable displays while keeping the same content on the other displays. The fixed output allows you to "Set it and forget it." For example, If you have a 720P display, set the AC-SC2-AUHD-GEN2 to 720P, and any inbound signal will be scaled up or down to 720.



NOTE: Only stereo audio is supported when scaling is on.



Interlaced to Progressive Scaling - This advanced technology will help installers overcome problematic 1080i sources by converting interlaced signals to progressive ones. For example, you can convert a 1080i 2CH signal to 1080P, 4K 30Hz, 4K 60Hz 4:2:0, or 4K 60Hz 4:4:4 at the user's will.



Adaptive Scaling Mode - This EXCLUSIVE AVPro Edge technology was designed specifically to overcome problems with legacy sources, like set-top boxes outputting 720P 2CH or 1080i 2CH. Sink devices can exhibit stability issues when these legacy formats are implemented into modern, high-bandwidth distribution systems. The Adaptive Scaling Mode will convert all HDMI signals less than 1080P to 1080P. When scaling is enabled, only 2Ch audio is supported. Fortunately, Adaptive Scaling Mode will bypass 4K, HDR, and multichannel audio signals through untouched. This will allow you to install legacy sources in modern systems comfortably.

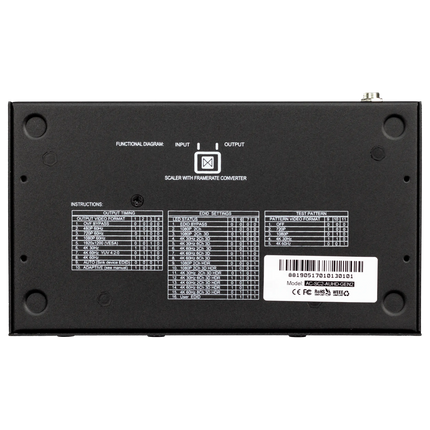

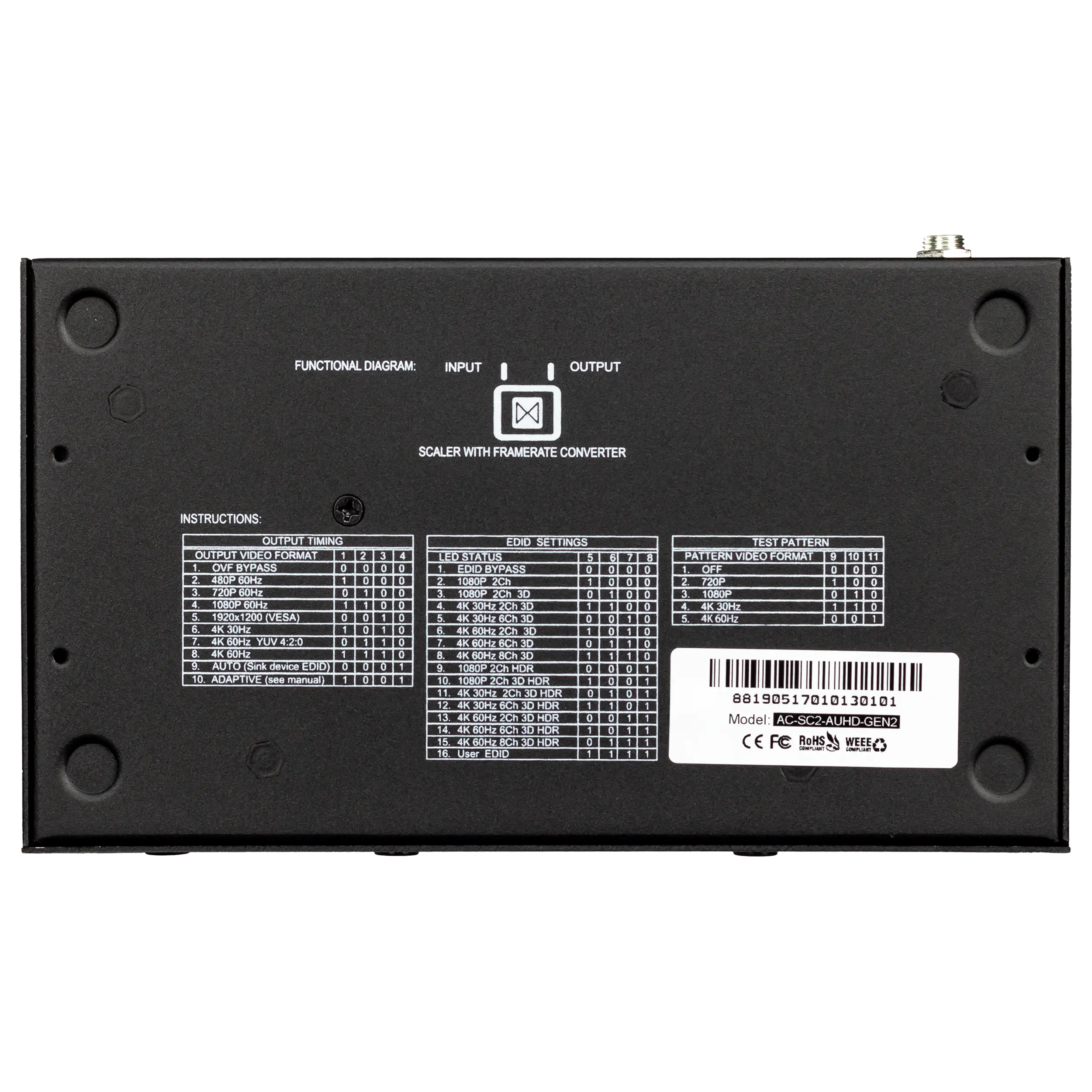

The Most Advanced EDID Management - There are 16 pre-loaded EDID settings from legacy technology (480) to full 4K and HDR Options. This is the only device that will provide this unique EDID combination. In addition, the AC-SC2-AUHD-GEN2 has a custom user EDID for future use, total customization, and EDID bypass for using the sink EDID.



L/R Audio De-Embedding - The AC-SC2-AUHD-GEN2 has an audio output that allows audio to be stripped anywhere in a system and re-routed to where it's needed most. AC-SC2-AUHD-GEN2 units can be combined and multiple streams stripped from multiple outputs or sources.



NOTE: The extracted audio output only supports 2CH PCM and cannot downmix - for downmixing, check out AC-AVDM-AUHD or our AXION line of matrix switchers.

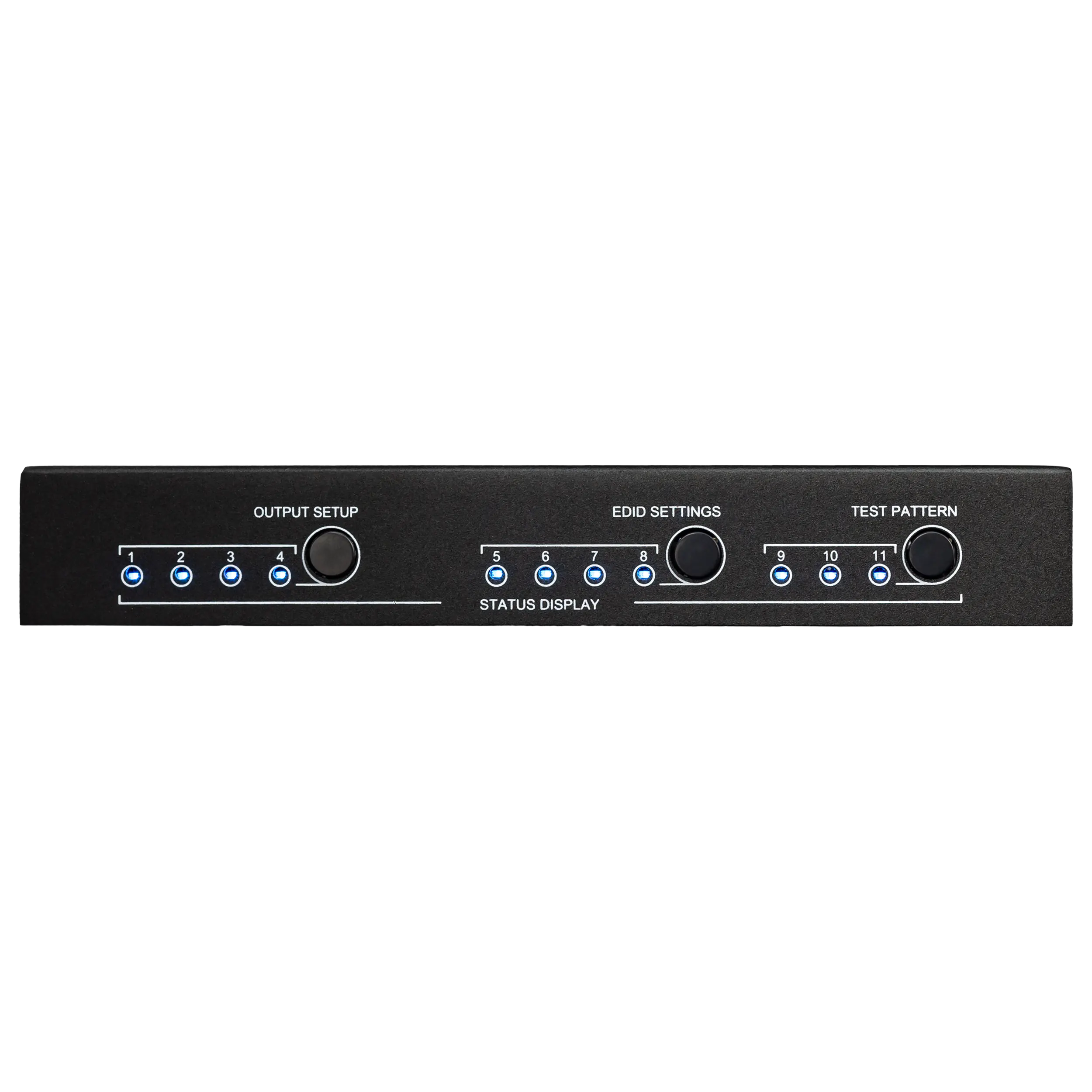

On-Board Troubleshooting - This unit allows you to generate a 720P, 1080P, or 4K test pattern to identify external problems (source, repeater, displays, etc.). You can now be sure that your wiring is correct and get to the bottom of issues quickly without worrying if the source or sink is working correctly.

Video:
Video ResolutionsUp to 4K 60Hz 4:4:4
VESA ResolutionsUp to DCI 4K (4096X2160)
HDR Formats/Resolutions420, 422, 444 (10 AND 12 DEEP COLOR)
HDR10, HDR10+, DOLBY VISION, HLG
Color SpaceYUV (Component), RGB
(CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0 Supported
Deep ColorUp to 16 bit (1080P) UP TO 12 BIT (4K)
Audio:
Audio Formats Supported HDMIPCM 2Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos
Audio Formats Supported Extracted (2 CH Port)PCM 2 CH (No Downmix)
Audio Formats Supported Extracted (Digital Toslink)PCM 2ch, LPCM 6 Ch, LPCM 7Ch, Dolby Digital, Dolby Digital Plus, DTS-HD Master Audio
NOTE:  When scaling is enabled only 2 Ch Audio is supported.
Scaling:
Fixed Output Options
(Scales all input formats to the Same)
480P 60Hz, 720P 60Hz, 1080P 60Hz, 1920x1200 (Vesa), 4k 30Hz, 4k60Hz YUV 4:2:0, 4k60Hz, Auto (sink Device EDID) *See manual for more info
Framerate Yes
Interlaced-> Progressive COnversionYes
Test Pattern GeneratorYes
Distance:
HDMI In/Out (4k60 4:4:4)UP TO 50 FEET (USING BULLET TRAIN HDMI)
HDMI In/Out (W/ AOC Cable) (4k60 4:4:4)UP TO 130 FEET (USING BULLET TRAIN AOC)
Other:
Bandwidth18 Gbps
HDCPHDCP 2.2 and Earlier

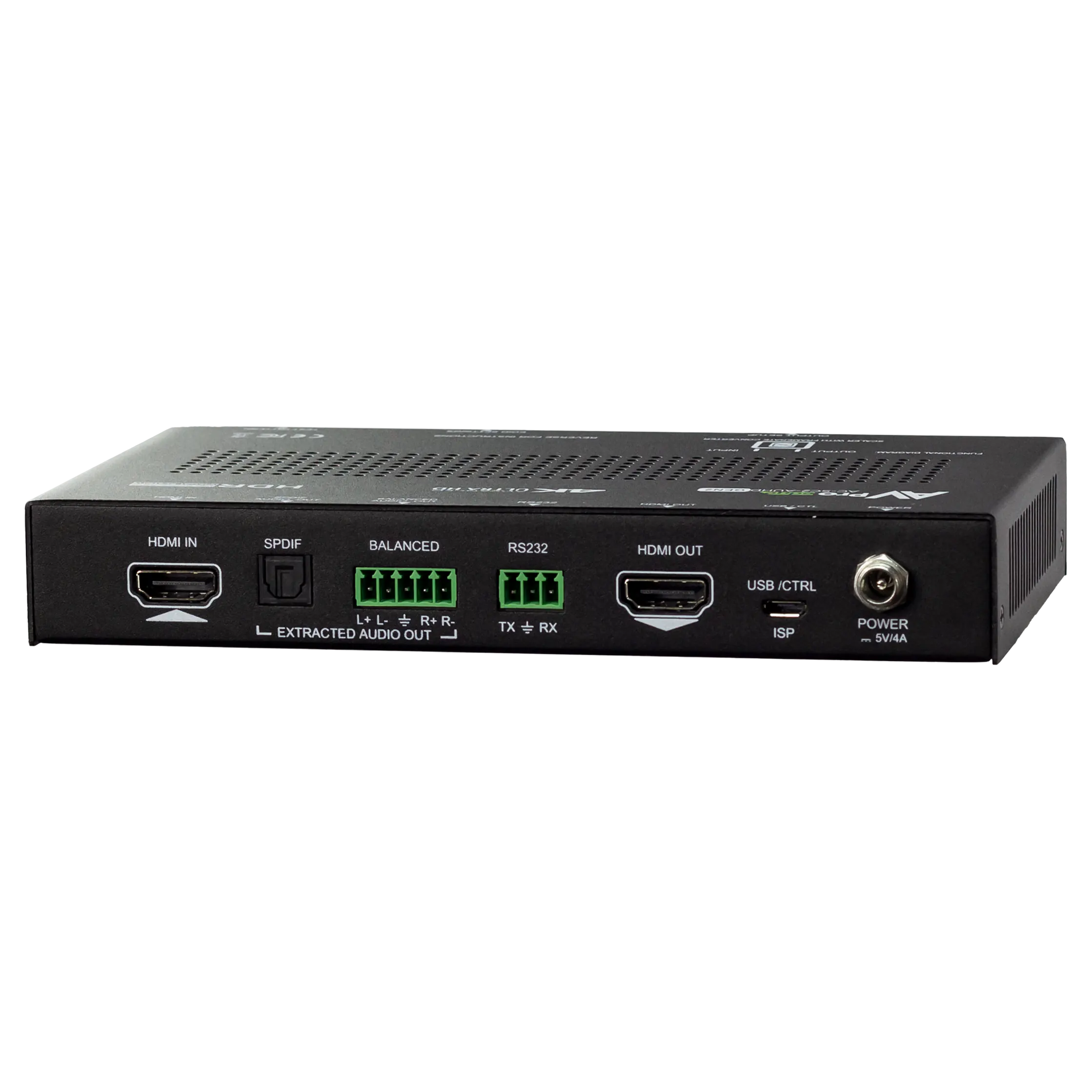

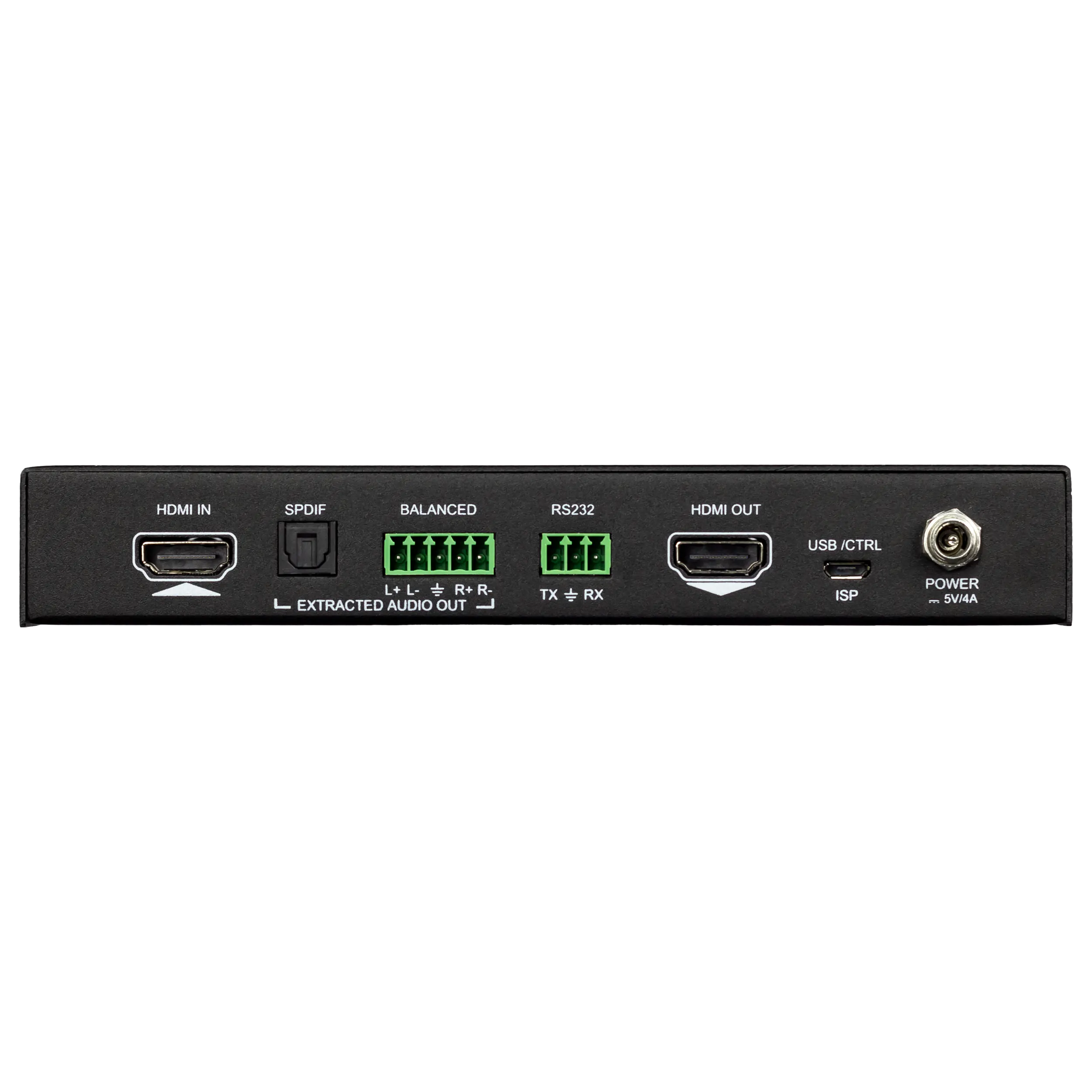

Ports:
HDMIType A
Audio (Extracted Analog)5 Pin Terminal Block (balanced)
Audio (Extracted Digital)Optical Toslink
Firmware/ControlMicro USB AND RS232 (3 pin terminal block)
PowerBarrell Type 5V, 4A
Environmental:
Operating Temprature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
Power:
Power Consumption (Total)10 watts max
Power SupplyInput: AC 100-240V ~ 50/60Hz
Output: DC 5V 4A
Dimensions:
Dimensions (Unit Only Length/Width/Height) MM: 107.92 X 184.15 X 28.1
inch: 4.25 X 7.25 X 1.11
Dimensions (Packaged Length/Width/Height) (Kit)MM: 184.2 X 316 X 79.5
inch: 7.25 X 12.44 X 3.13
Weight (Unit)0.7 LBS (0.32 KG)
Weight (Packaged)1.4 LBS (0.64 KG)
*Specifications subject to change without notice.  Mass & dimensions are approximate

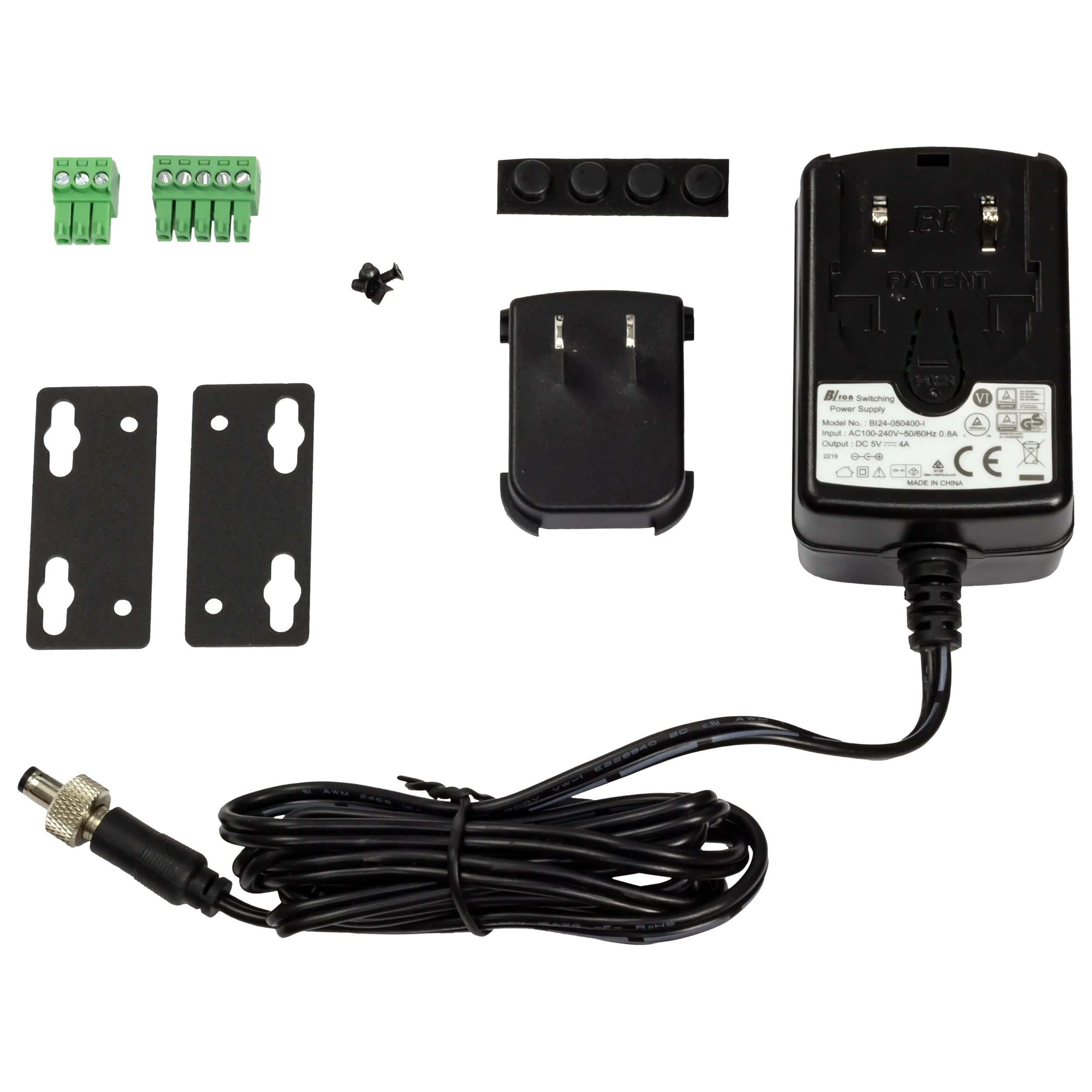

  • AC-SC2-AUHD-GEN2
  • 5V/4A Power Supply
  • 2 x Mounting Brackets
  • 4 x Screws for Mounting Brackets
  • 1 x 3-Pin Terminal Block
  • 1 x 5-Pin Terminal Block
