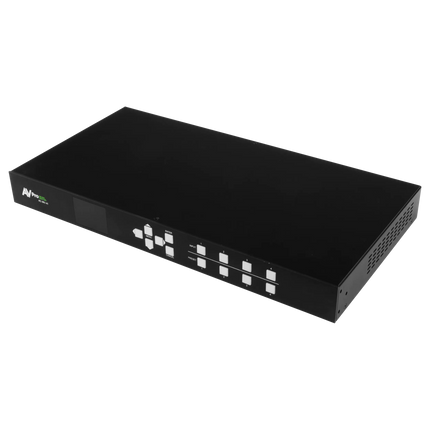

This versatile Multi-Viewer simultaneously displays as many as four separate sources on any size monitor, television, or projector. Paired with our STILE app, seamlessly configure layout and settings from your smart device.
SKU: AC-MV-41
Bring the Sports Bar Home: With one to as many as four sources displayed simultaneously on a single screen, Game Day will never be the same. Be a broadcast coordinator and catch every crucial game-changing moment.
Full HDR Compatibility: The AC-MV-41 features AVPro Edge’s unique ability to strip away HDR metadata (post-loop out circuitry) converting the signal into RGB, and enabling mixed dynamic range input sources to be combined by the AC-MV-41 multi-viewer for flawless display.

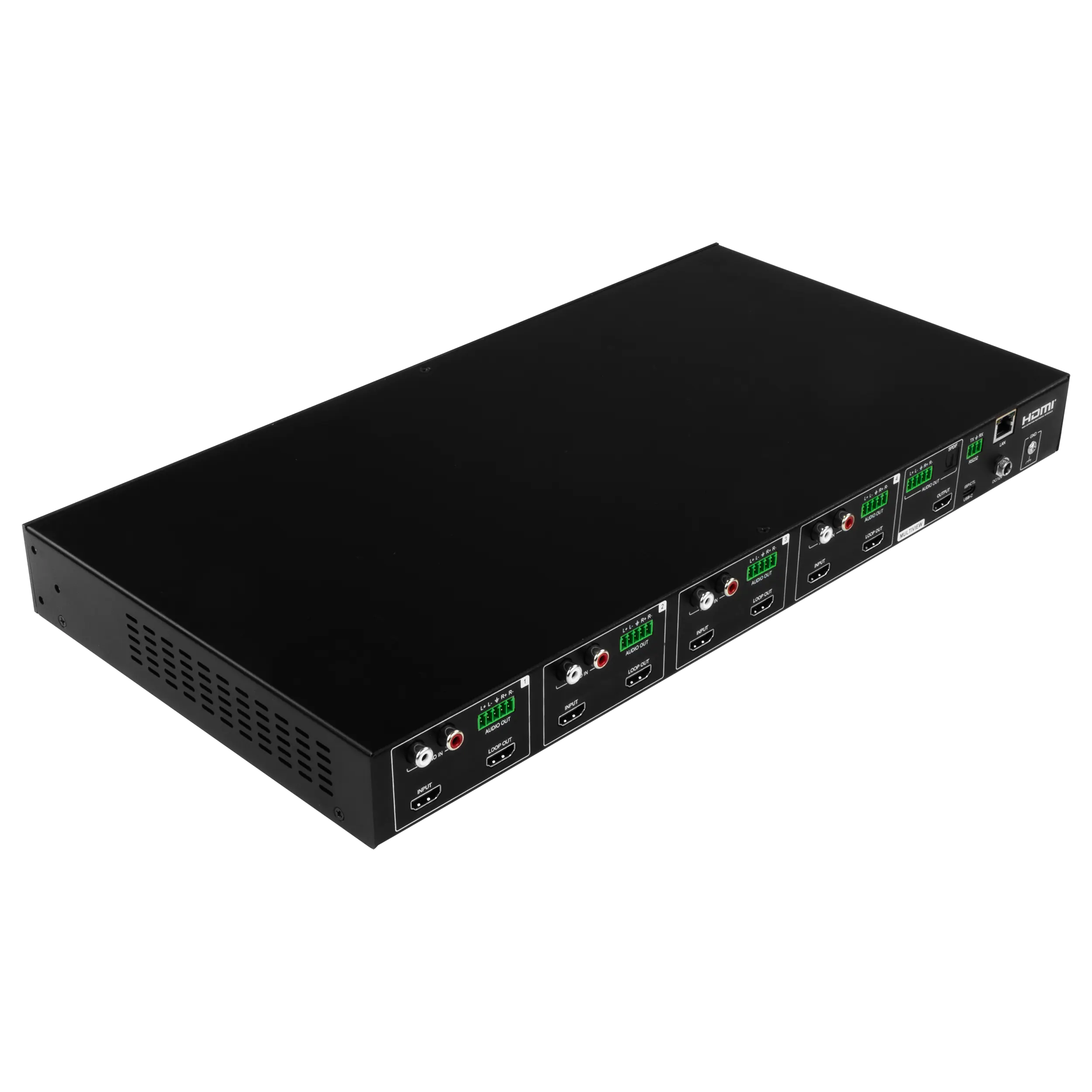

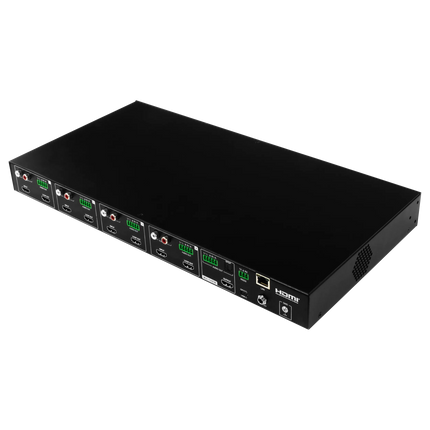

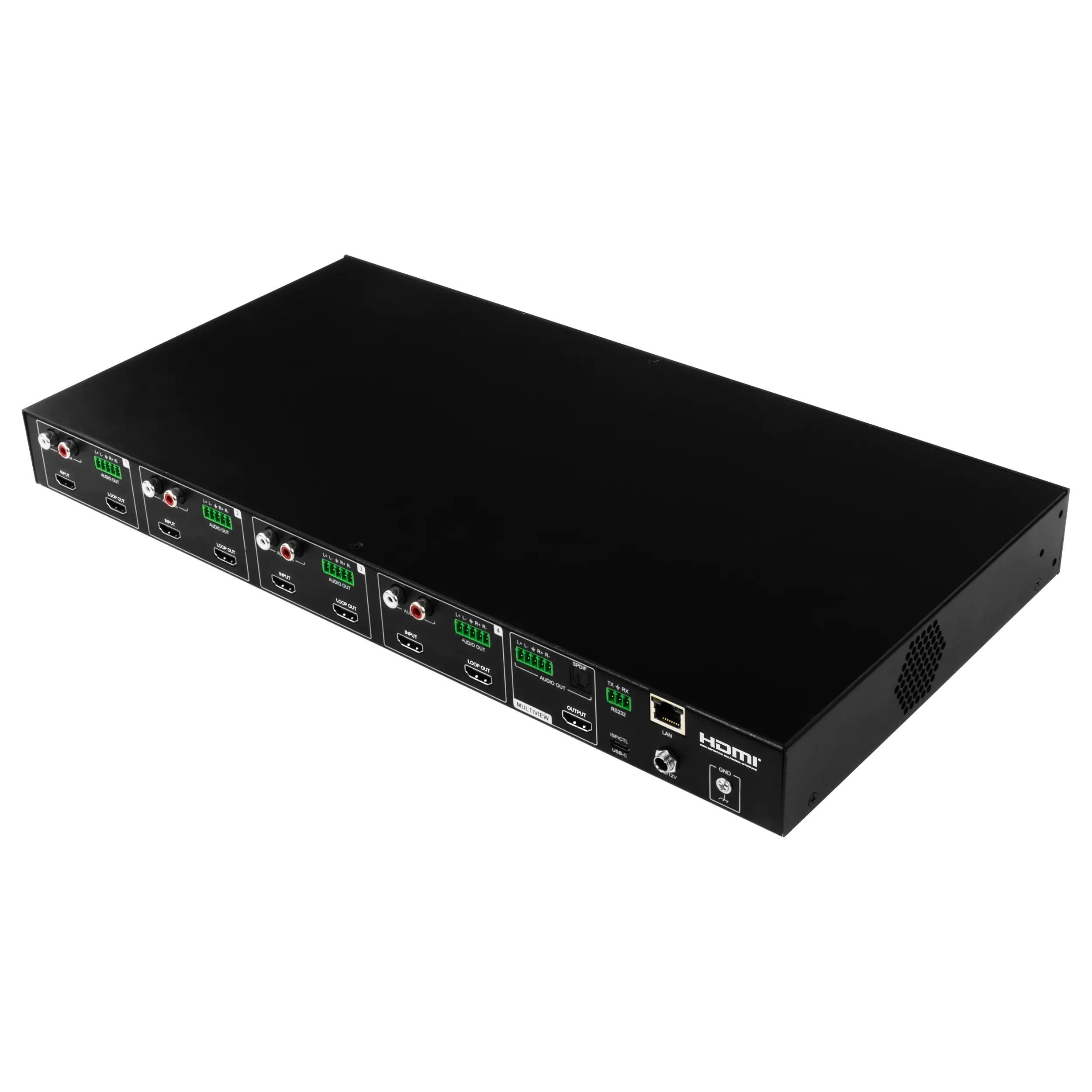

HDMI Input Loop out: Each HDMI input has a companion HDMI loop output for pass-along integration with additional system devices. The loop-out circuitry is positioned in the signal chain before metadata is stripped away (described above) and is preserved for playback on other system displays, or another input of the main display used by the AC-MV-41.
Customized Layouts with STILE: Remember the days when Picture-in-Picture was a typical TV feature? The digital era made that too complex. Bring it back, and more, with the AC-MV-41. Whether the classic main picture/keep tabs box in the corner, quad view with four equally sized windows, or custom layouts featuring window tiling imaginatively crafted by your creativity, the AC-MV-41 lets your TV remote control take a well-earned time out.
HDMI 2.0 Support: The AC-MV-41 is HDMI 2.0 compliant, with HDCP 2.3, for all four inputs and the solo HDMI output. Sources may include SD, HD, and Ultra HD up to 4K/60 fps and safely be combined into a single image for playback on the dedicated display. AVPro Edge’s renowned EDID management eliminates interface headaches so systems function reliably with complete repeatability.
Driver Support: Control 4 driver are available for immediate deployment. The API is robustly fortified, and full command is capable by nearly every major third-party overcontrol provider.
Analog inputs and Outputs: Alternate audio from an HDMI source (for example, audio from HDMI outputs from some laptops that will not pass through) may be assigned to follow the video via the RCA input.
A 5-pin block connector passes extracted left and right channel audio for site-wide distribution if desired. (Note: This is not Downmixed audio. Front left and right channel content from multichannel audio codecs will playback as they were encoded and may not contain dialogue information).
| Video: | |
| Video Resolutions | Up to 4K60 |
| HDR Formats/Resolutions | 420, 422, 444 (10 AND 12 DEEP COLOR) HDR10, HDR10+, DOLBY VISION, HLG |
| Color Space | YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500) |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 Supported |
| Deep Color | Up to 16 bit |
| Audio: | |
| Audio Formats Supported HDMI | PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos |
| Analog Input Voltage | 0.8 VRMS; 2.3 Vp-p |
| Audio Formats Supported Extracted (2CH Port) | PCM 2 CH |
| Analog Output Peak Voltage | 1.39 VRMS; 3.94 Vp-p |
| Distance: | |
| HDMI In/Out (4k60 4:4:4) | UP TO 50 FEET (USING BULLET TRAIN HDMI) |
| HDMI In/Out (W/ AOC Cable) (4k60 4:4:4) | UP TO 130 FEET (USING BULLET TRAIN AOC) |
| Other: | |
| Bandwidth | 18 Gbps (TMDS) |
| HDCP | HDCP 2.3 and Earlier |
| Control: | |
| Control | Lan, RS232 |
| Drivers | C4, RTI, ELAN, URC (for more - see Drivers Page) |
| AVPro WebUI | YES |

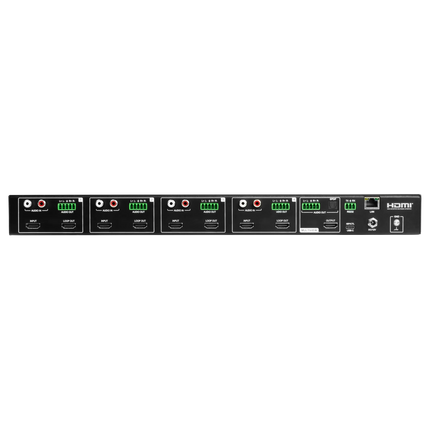

| Ports: | |
| HDMI | Type A |
| LAN | RJ45 w/ Web Interface/ Control |
| Audio (Analog Input) | RCA |
| Audio (Extracted Analog) | 5 PIN Terminal Block (Balanced) |
| RS232 | 3 Pin Terminal Block |
| Environmental: | |
| Operating Temperature | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity Range | 5-90% RH (No Condensation) |
| Power: | |
| Power Consumption (Total) | 23.04W (12V 1.92A) |
| Power Supply | Input: AC 100-240V~ 50/60HZ Output: DC 12V 5A |
| Dimensions: | |
| Dimensions (Unit Only Length/Width/Height) | mm: 225.55 X 439.67 X 44.45 in: 8.88 X 17.31 X 1.75 |
| Dimensions (Packaged Length/Width/Height) | mm: 374.65 X 569.98 X 123.95 in: 14.75 X 22.44 X 4.88 |
| Weight (Unit) | 7 Lbs (3.18 Kg) |
| Weight (Packaged) | 9.6 Lbs (4.35Kg) |
| *Specifications subject to change without notice. Mass & dimensions are approximate | |

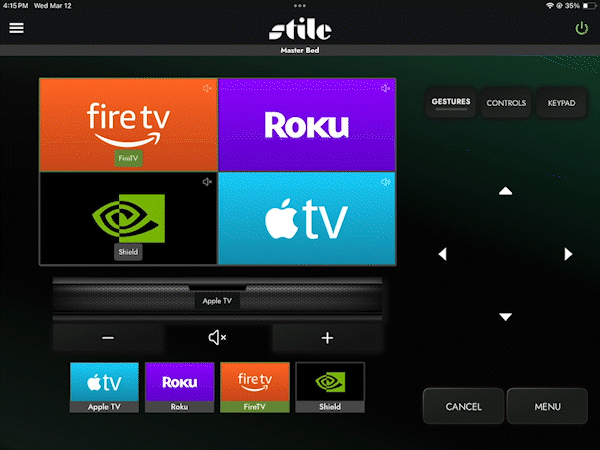

Effortless control at your fingertips. STILE is a user-friendly drag-and-drop app, compatible with both tablets and smartphones on iOS and Android Devices, makes managing multiple sources on your TV simple and intuitive.
With seamless integration and an easy setup process, you can customize your viewing experience without complicated remotes or settings—just tap, drag, and enjoy. Learn more here.
