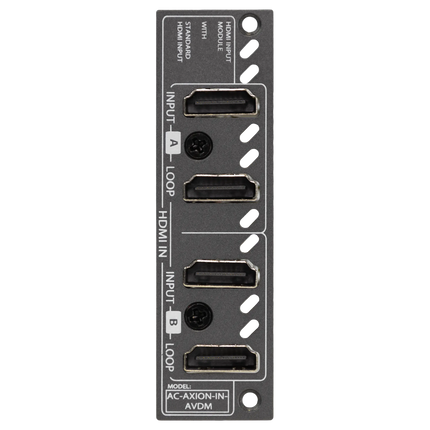

AXION Dual HDMI Input Card with Downmixing

Description

Dual 18Gbps HDMI input ports with dual mirrored HDMI loop-out ports. Downmix standard Dolby Audio & DTS-HD formats up to 7.1 for output as stereo (LPCM 2.0) from the dual mirrored HDMI loop-outs or via audio extraction from the 5-pin analog balanced outputs or the TOSLINK digital outputs (mirrored and always downmixed to 2-channel audio). Dolby Atmos and DTS:X may be extracted and downmixed as 7.1, minus object-oriented metadata, or passed-through untouched via HDMI loop-outs.

  • Input A: (1) HDMI + 1 Mirrored HDMI
  • Input B: (1) HDMI + 1 Mirrored HDMI

    AXION Dual HDMI Input Card with Downmixing

    Product form

    • HDMI 2.0a/b Output
    • Uncompressed HDMI Bitstream Audio (Dolby Atmos, DTS-X)
    • Perfect AVR Bypass deliver 18Gbps to Display and uncompressed audio to AVR
    • Downmix Audio formats up to 7.1-Channel to 2-Channel Stereo
    • Full 12 Bit HDR Support

    SKU: AC-AXION-IN-AVDM

    • Shipped today? Order within: Dec 14, 2024 13:00:00 -0600

    Description

    Dual 18Gbps HDMI input ports with dual mirrored HDMI loop-out ports. Downmix standard Dolby Audio & DTS-HD formats up to 7.1 for output as stereo (LPCM 2.0) from the dual mirrored HDMI loop-outs or via audio extraction from the 5-pin analog balanced outputs or the TOSLINK digital outputs (mirrored and always downmixed to 2-channel audio). Dolby Atmos and DTS:X may be extracted and downmixed as 7.1, minus object-oriented metadata, or passed-through untouched via HDMI loop-outs.

    • Input A: (1) HDMI + 1 Mirrored HDMI
    • Input B: (1) HDMI + 1 Mirrored HDMI
