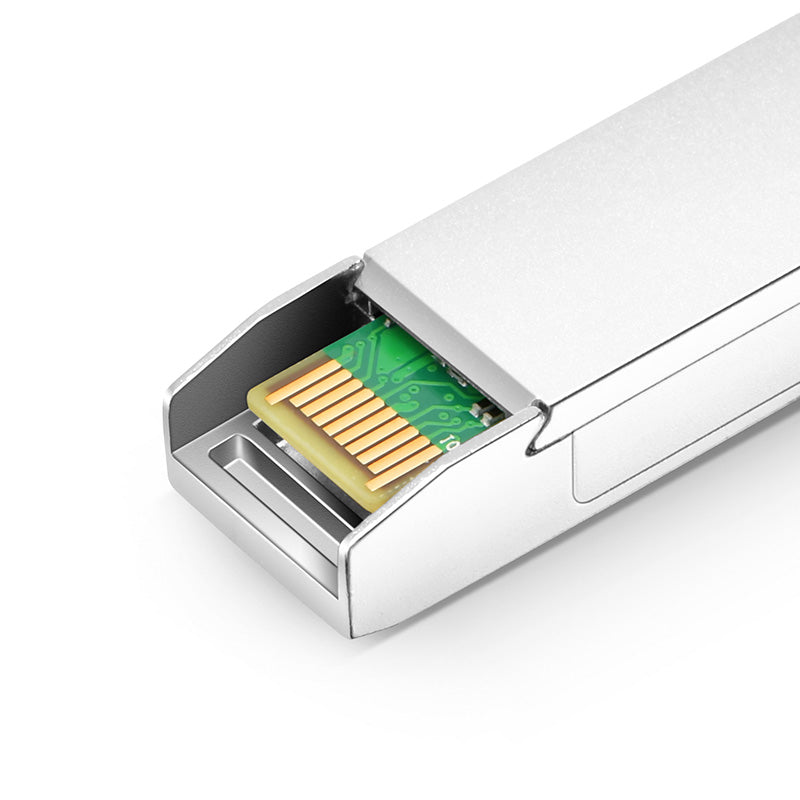

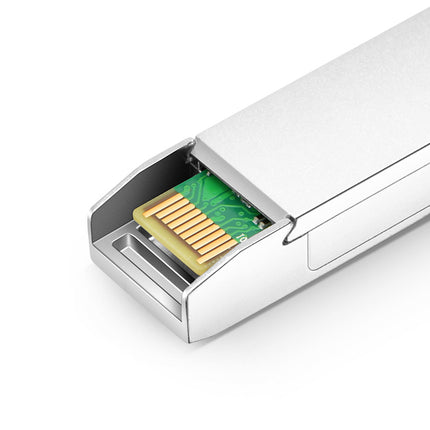

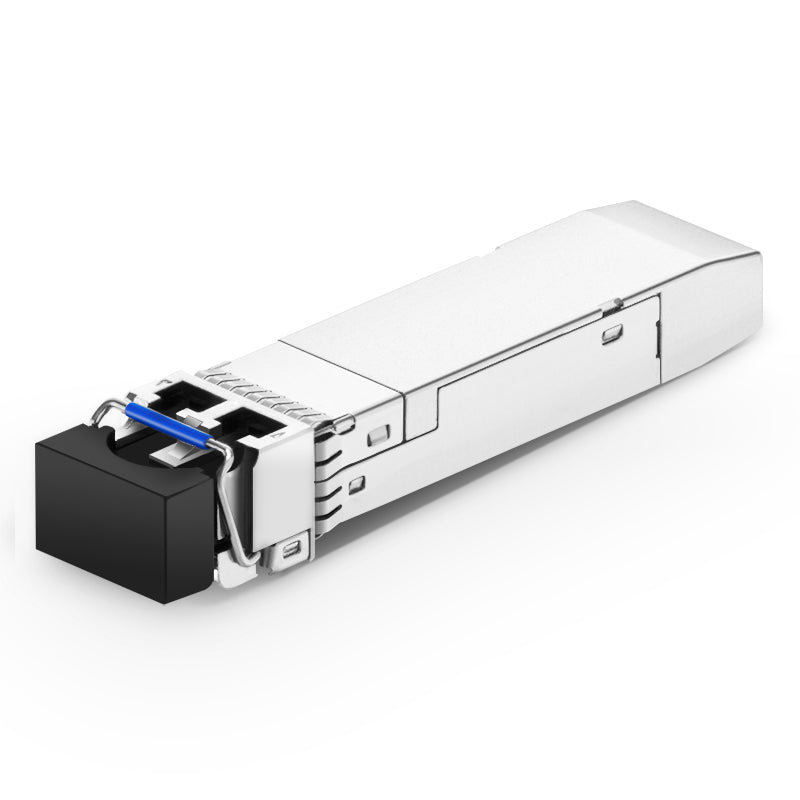

10G SFP+ Single-Mode Fiber Module

Description

10G SFP+ Optical Transceiver Modules connect 10G TCVRs and the 10G CBOX with 10G network switches and facilitate stacking MXNET 1G SW24/48 network switches. Available as single-mode, multi-mode, and copper modules, all are hot-swappable and MSA compliant, with a MTBF rating of 5 million hours.

AVPro Edge modules feature low power consumption, high-speed performance, and high-density. Rigorous testing assures complete interoperability with all AVPro Edge switches.

10G SFP+ Single-Mode Fiber Module

Product form

  • Hot Pluggable SFP+ MSA Compliant
  • IEEE 802.3ae Compliant
  • Class 1 FDA Laser Safety and RoHS Compliant
  • Tested with MXNet Switches for Superior Performance, Quality, and Reliability

SKU: AC-10G-SFPP-SM

  • Shipped today? Order within: Dec 14, 2024 13:00:00 -0600

Description

10G SFP+ Optical Transceiver Modules connect 10G TCVRs and the 10G CBOX with 10G network switches and facilitate stacking MXNET 1G SW24/48 network switches. Available as single-mode, multi-mode, and copper modules, all are hot-swappable and MSA compliant, with a MTBF rating of 5 million hours.

AVPro Edge modules feature low power consumption, high-speed performance, and high-density. Rigorous testing assures complete interoperability with all AVPro Edge switches.

  • Specs
Form FactorSFP+
Wavelength1310nm

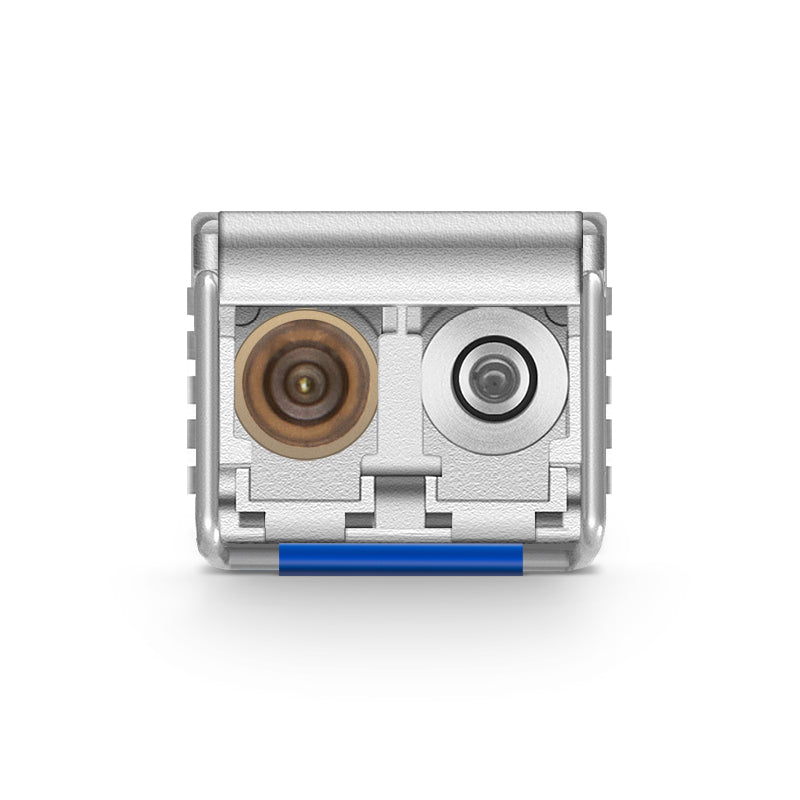

ConnectorDuplex LC
Transmitter TypeDFB
TX Power-8.2~0.5dBm
Powerbudget6.2dB
Typical Power Consumption<1W
Core Size9/125µm
ProtocolsIEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
Max Data Rate10.3125Gbps
Max Cable Distance10km
MediaSMF
Receiver TypePIN
Receiver Sensitivity<-14.4dBm
Receiver Overload0.5dBm
Extinction Ratio>3.5dB
Commercial Temperature Range0 to 70°C (32 to 158°F)
ModulationNRZ
