10G SFP+ Module

Description

10G SFP+ Optical Transceiver Modules connect 10G TCVRs and the 10G CBOX with 10G network switches and facilitate stacking MXNET 1G SW24/48 network switches. Available as single-mode, multi-mode, and copper modules, all are hot-swappable and MSA compliant, with a MTBF rating of 5 million hours.

AVPro Edge modules feature low power consumption, high-speed performance, and high-density. Rigorous testing assures complete interoperability with all AVPro Edge switches.

10G SFP+ Module

Product form
  • Hot Pluggable SFP+ MSA Compliant
  • IEEE 802.3ae Compliant
  • Class 1 FDA Laser Safety and RoHS Compliant

SKU: AC-10G-SFPP-MM

  • Shipped today? Order within: May 18, 2024 13:00:00 -0500

Description

10G SFP+ Optical Transceiver Modules connect 10G TCVRs and the 10G CBOX with 10G network switches and facilitate stacking MXNET 1G SW24/48 network switches. Available as single-mode, multi-mode, and copper modules, all are hot-swappable and MSA compliant, with a MTBF rating of 5 million hours.

AVPro Edge modules feature low power consumption, high-speed performance, and high-density. Rigorous testing assures complete interoperability with all AVPro Edge switches.

  • Fiber SFP+ Specs
  • Copper SFP+ Specs
AC-10G-SFPP-MM
Form FactorSFP+
Wavelength850nm
ConnectorDuplex LC
Transmitter TypeVCSEL
TX Power-7.3--1dBm
Power budget3.8dB
Typical Power Consumption<1W
Commercial Temperature Range0 to 70°C (32 to 158°F)
Max Data Rate10.3125Gbps
Max Cable Distance300m@OM3/400m@OM4
MediaMMF
Receiver TypePIN
Receiver Sensitivity<-11.1dBm
Receiver Overload-1dBm
Extinction Ratio>3dB
ProtocolsIEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI



AC-10G-SFPP-SM
Form FactorSFP+
Wavelength1310nm
ConnectorDuplex LC
Transmitter TypeDFB
TX Power-8.2--0.5dBm
Power budget6.2dB
Typical Power Consumption<1W
Commercial Temperature Range0 to 70°C (32 to 158°F)
Max Data Rate10.3125Gbps
Max Cable Distance10km
MediaSMF
Receiver TypePIN
Receiver Sensitivity<-14.4dBm
Receiver Overload0.5dBm
Extinction Ratio>3.5dB
ProtocolsIEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
AC-10G-SFPP-C30
Form FactorSFP+
Typical Power Consumption≤2.9W
Connector TypeRJ-45
EMC (Electro Magnetic Compatibility)Supported
Commercial Temperature Range0 to 70°C (32 to 158°F)
Max Data Rate10Gbps
Max Cable Distance30m@Cat6a/Cat7 or Better
Cable TypeCopper
MTBF5,000,000 Hours
ProtocolsIEEE 802.3an, IEEE 802.3az, SFP+ MSA, SFF-8431



AC-10G-SFPP-C80
Form FactorSFP+
Typical Power Consumption≤2.5W
Connector TypeRJ-45
EMC (Electro Magnetic Compatibility)Supported
Commercial Temperature Range0 to 70°C (32 to 158°F)
Max Data Rate10Gbps
Max Cable Distance80m@Cat6a/Cat7 or Better
Cable TypeCopper
MTBF5,000,000 Hours
ProtocolsIEEE 802.3an, IEEE 802.3az, SFP+ MSA, SFF-8431

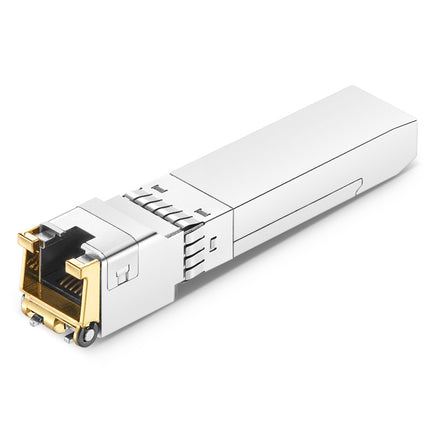

AC-10G-SFPP-C100
Form FactorSFP+ SGMII
Typical Power Consumption≤1.65W
Connector TypeRJ-45
EMC (Electro Magnetic Compatibility)Supported
Commercial Temperature Range0 to 70°C (32 to 158°F)
Max Data Rate10Gbps
Max Cable Distance100m@Cat6a/Cat7
Cable TypeCopper
Media10G@Cat6a/Cat7
5G@Cat5e/Cat6 or better
100M/1000M/2.5G@Cat5/Cat5e or better
ProtocolsIEEE 802.3an, IEEE 802.3az, SFP+ MSA, SFF-8431
