Cutting-Edge AV Distribution in a Midwest Suburban Home
A Little Background
In the outskirts of a mid-sized Midwestern town, a family has embraced the future of home entertainment with a state-of-the-art 10G AV over IP system. The MXnet system from AVProEdge forms the backbone of this setup, seamlessly connecting multiple video sources to 10 TVs distributed throughout the home.
A Challenge To Be Met
The homeowners sought a flexible, high-quality AV distribution system that could:
- Connect various video sources (Nvidia Shield, Apple TV 4K, Nintendo Switch, PlayStation 5, and security feed) to multiple TVs
- Allow easy switching of sources to any TV in the house
- Provide high-quality audio distribution throughout the home
- Be simple enough for all family members to use
AVPro Delivers The Solution
The implemented solution combines the MXnet 10G AV over IP system with specific AudioControl products. As both AVPro Edge and AudioControl are under the same family of brands this allowed for an easier process for ordering and support.
Video Distribution

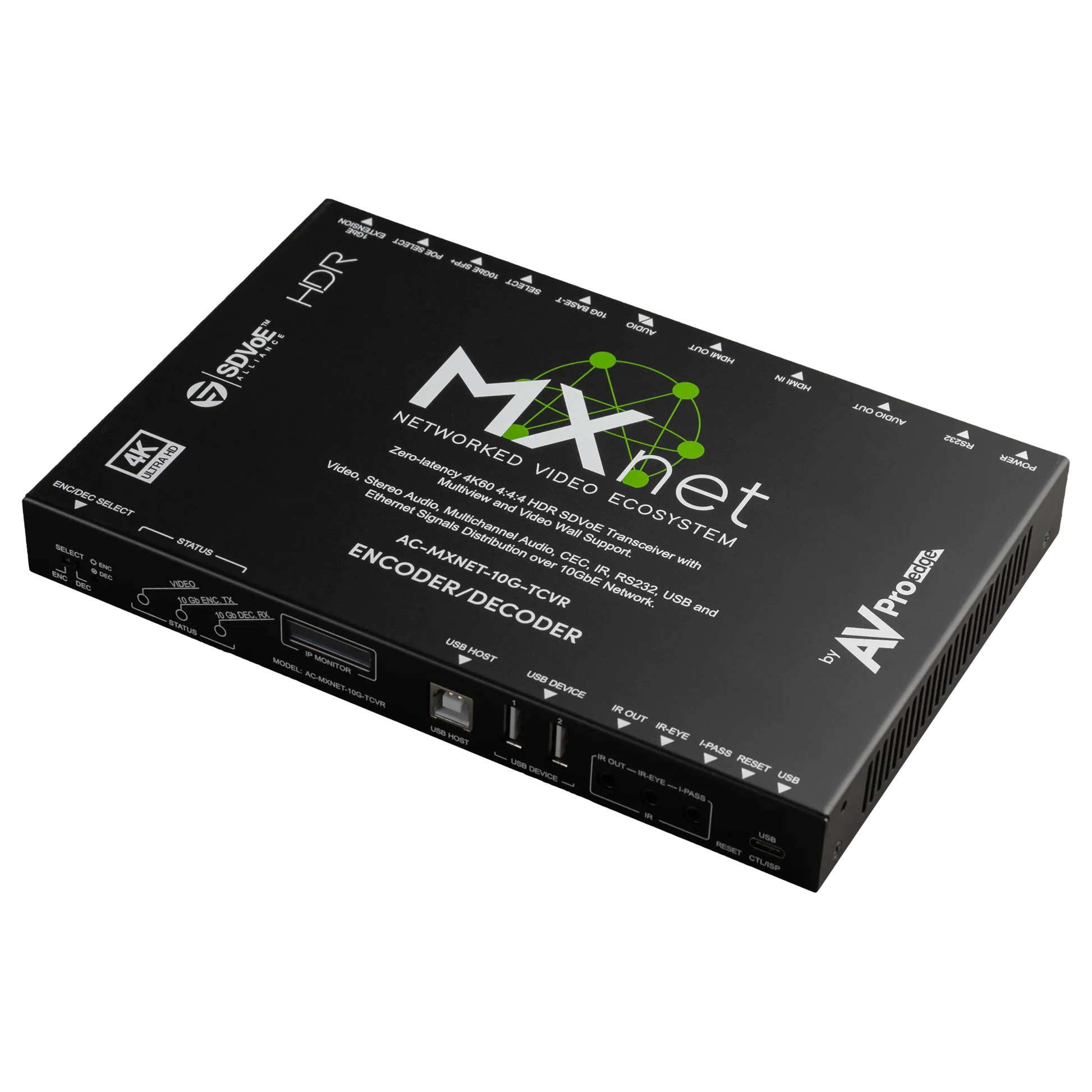

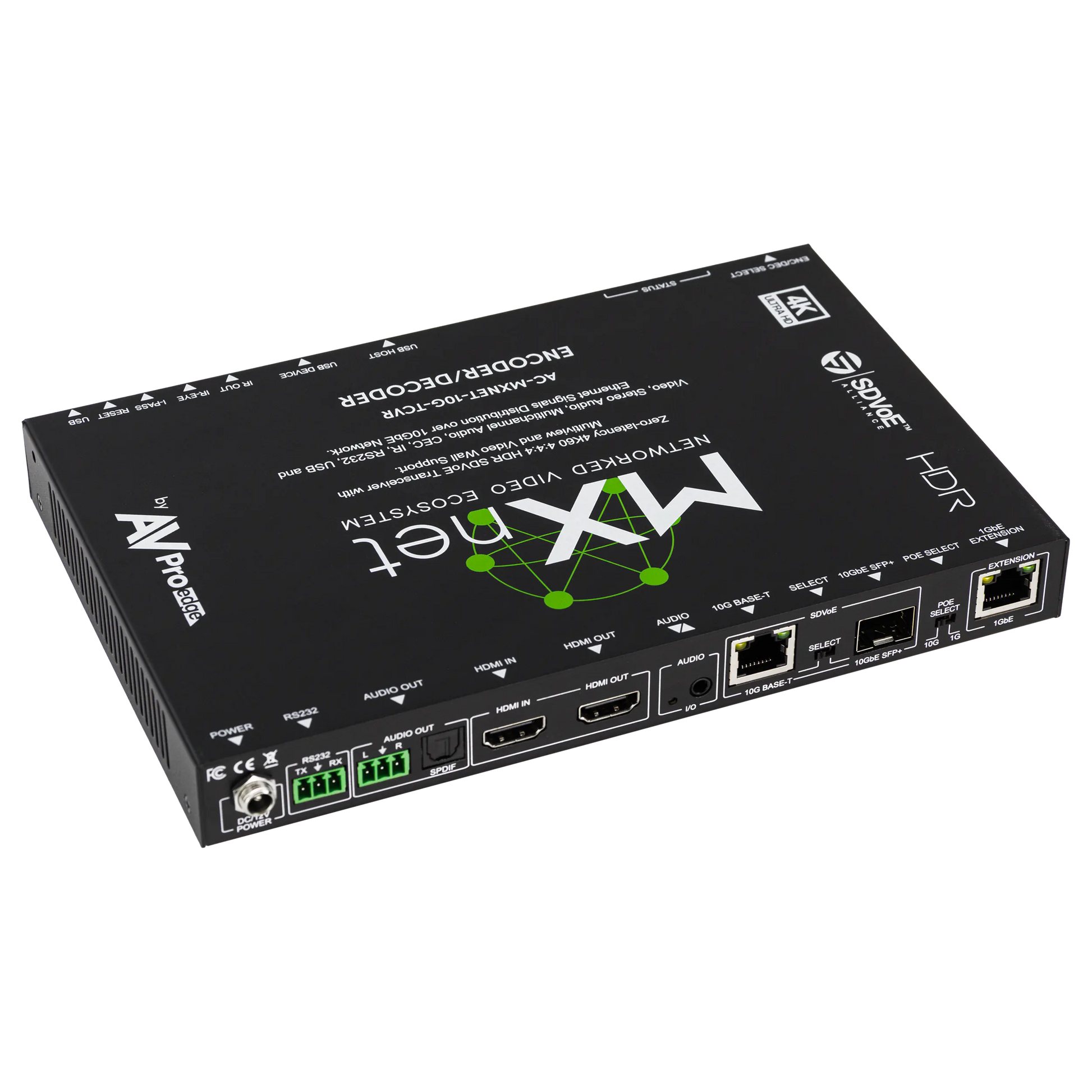

- MXnet 10G System: Utilizes AC-MXNET-10G-TCVR transceivers to encode and decode video signals, allowing for flexible routing of sources to displays
- 10 TV Zones: Bedrooms, living rooms, rec areas, home theater, gym, patio, and garage
- Multiple Sources: Nvidia Shield, Apple TV 4K, Nintendo Switch, PlayStation 5, and security feed
Audio Distribution
- AudioControl Director M4800: A high-power, 8-channel digital matrix amplifier for multi-room audio distribution
- AudioControl RS 1000: A high-current, 2-channel amplifier for powering larger speakers or subwoofers
- AudioControl XR-8: An 8-zone, high-resolution audio matrix processor for advanced audio routing and processing
Implementation
The MXnet 10G system forms the core of the video distribution network. AC-MXNET-10G-TCVR units are used as both encoders (connected to video sources) and decoders (connected to TVs). These units allow for zero-latency, uncompressed 4K/60fps 4:4:4 video transmission across the network.
The AudioControl suite of products works in harmony to deliver exceptional audio performance:
- The Director M4800 serves as the primary multi-room amplifier, powering most of the home's audio zones with its 8 channels of high-quality amplification.
- The RS 1000 is utilized for areas requiring more power, such as the home theater or outdoor speakers, providing robust, high-current amplification.
- The XR-8 acts as the brain of the audio system, managing audio routing, processing, and optimization for all zones.
This combination allows for precise control over audio distribution and quality throughout the home, perfectly complementing the video capabilities of the MXnet system.
The Control4 system provides an intuitive interface for managing the entire setup, allowing family members to easily select sources and destinations for both audio and video content.
Results
The implemented system has transformed the family's home entertainment experience:
- Flexibility: Any source can be routed to any TV with just a few taps on the Control4 touchpad.
- Family Bonding: The home theater can display multiple sources simultaneously, allowing family members to enjoy different content together.
- Whole-Home Audio: The AudioControl system delivers high-quality sound throughout the house, perfect for background music or holiday tunes.
- Ease of Use: Even children can operate the system thanks to the intuitive Control4 interface.
- Future-Proof: The 10G infrastructure ensures the system can handle future high-bandwidth content.
To Wrap it Up
This case study demonstrates how modern AV distribution systems can enhance family life and home entertainment. The combination of AVProEdge's MXnet 10G system and AudioControl's high-performance audio products provides a powerful, flexible, and user-friendly solution that brings the family closer together through shared experiences and individual content consumption.
The success of this implementation highlights the growing trend towards whole-home AV distribution systems that prioritize quality and ease of use. As technology continues to evolve, such systems are likely to become increasingly common in homes across America, reshaping how families interact with media and with each other.
